Base URL Structure

All 3D Viewer v4.0 Vuframe embed URLs start with:

https://embed4.vuframe.com/[embedCode]?player=4.1.0

where [embedCode] is your unique embed identifier.

Query Parameters

You can customize the embedlink behavior using various query parameters. Parameters can be added to any of the URL patterns above:

https://embed4.vuframe.com/12345678?player=4.1.0&ao=1

Available Query Parameters

The following query parameters can be used to customize your embedlink.

• cache=0: Disable local caching of model files (default: unset, cache enabled)
• sd=1: Set quality level to SD (Standard Definition - for legacy devices)
• hd=1: Set quality level to HD (High Definition, fast devices).
• uhd=1: Set quality level to UHD (Ultra High Definition - ultra-fast, desktop-like devices)
• ao=1: If set to 1 ambient occlusion is enabled for the displayed model
• ao_intensity=0.8: Set ambient occlusion intensity (default: 0.8)
• ao_radius=1.5: you can set the radius or spreading of the ambient occlusion (default: 1.5)
• ao_bias=0.75: Set the fall-off of ambient occlusion, use this to suppress black lines at the horizon (default: 0.75)
• shadows=1: If set to 1 realtime shadows are enabled
• shadow_strength=1: Set shadow strength, i.e. opacity (default: 0.5)
• shadow_area=1.0: you can set the size of the area where shadows are thrown on (default: 1.0)
• shadow_distance=100.0: Set distance (in units) after which shadows are faded out (default: 100.0)
• autorotate=1: Enable automatic camera rotation
• autorotate_speed=1: Set the speed of automatic camera rotation (default: 1)
• bg_color=000000: Set background color from HEX, RGB, RGBA or html color name (default: white)

Example with Multiple Parameters

https://embed4.vuframe.com/12345678?player=4.1.0&uhd=1&ao=1&shadows=1&shadow_strength=0.71&shadow_area=15&shadow_distance=50&ao_intensity=1&ao_radius=0.5

Ambient Occlusion

Without ambient occlusion

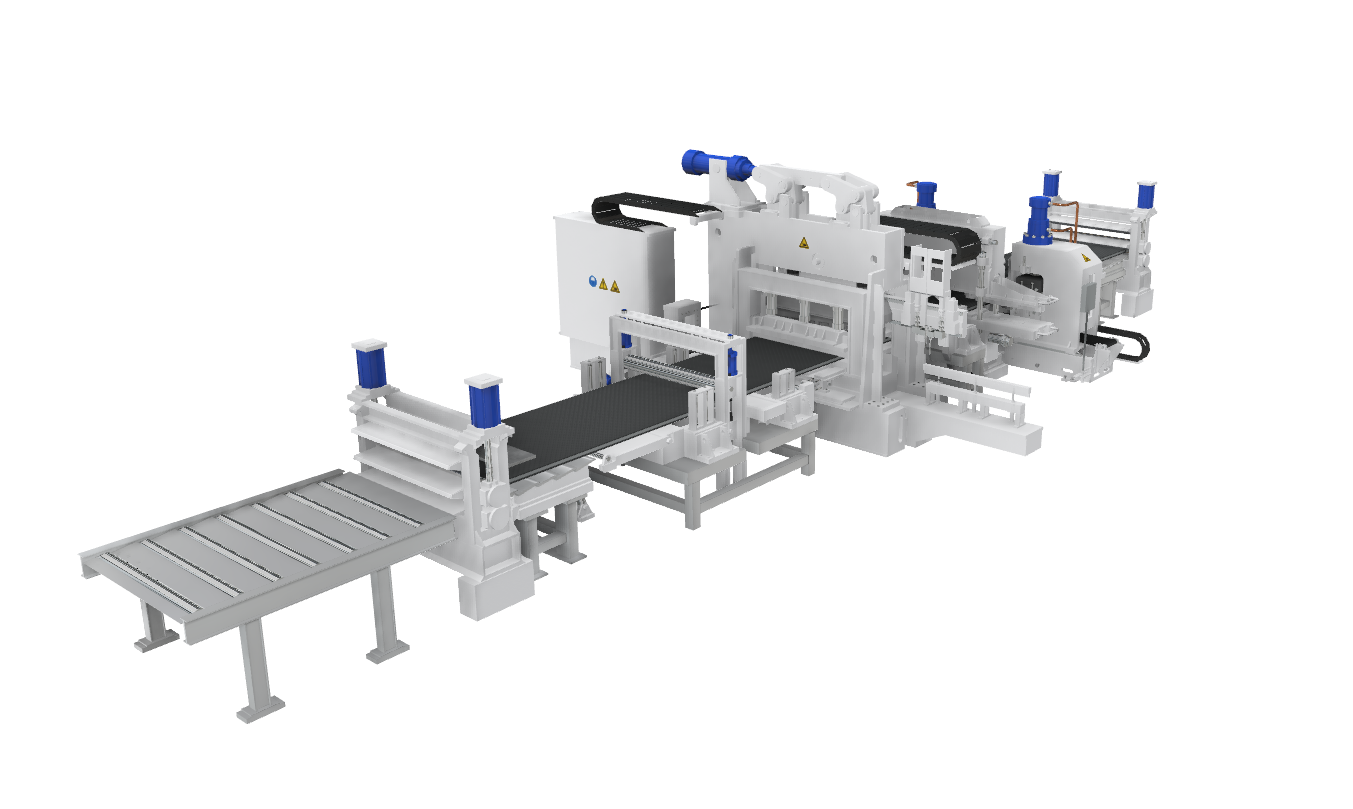

With ambient occlusion

Shadows

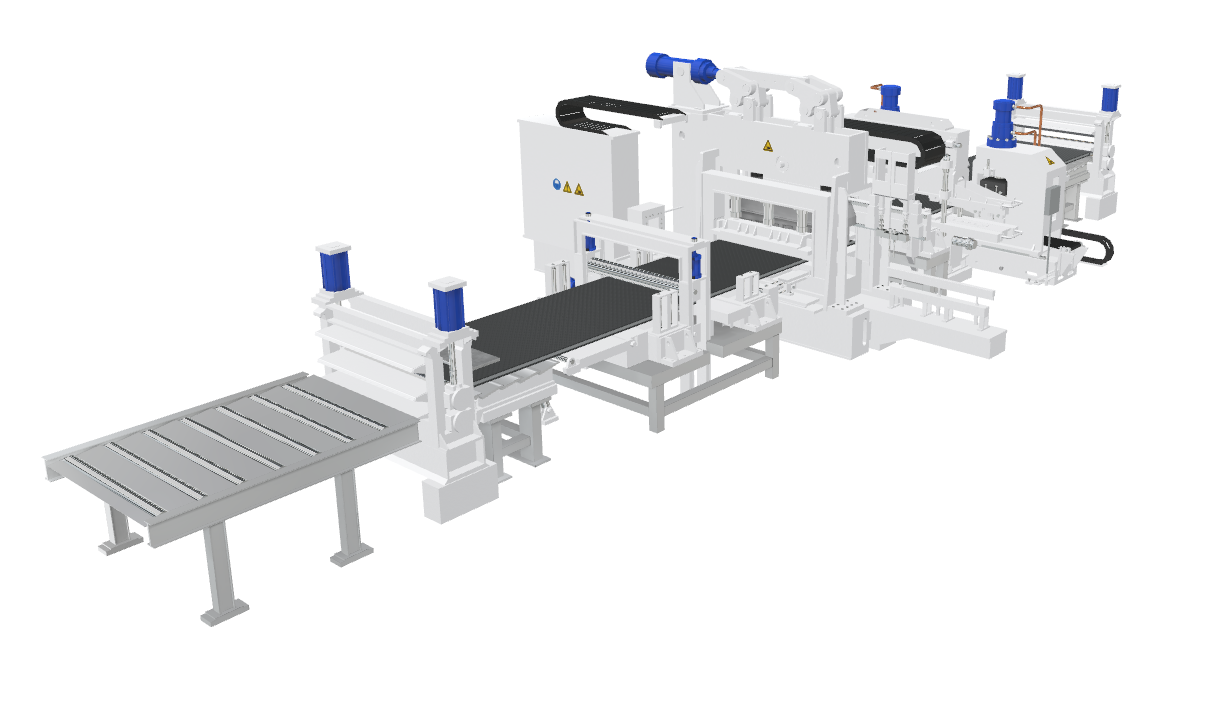

Without realtime shadows

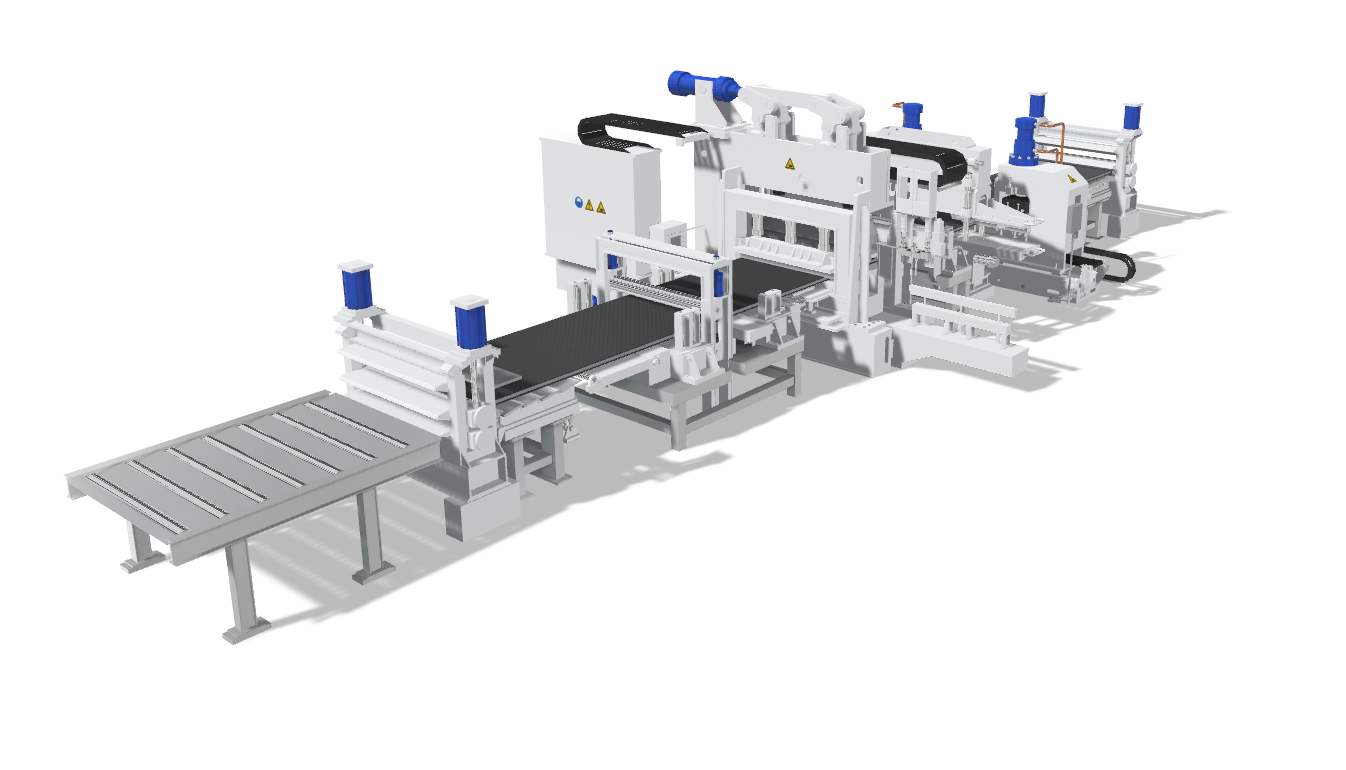

With realtime shadows

Shadow Area

The area must be smaller for small products than for large ones.

Ambient Occlusion Radius

The radius must be smaller for small products than for large ones.

Technical Notes

• All query parameters are optional
• Parameters use values 0 and 1 for boolean options (0 = off, 1 = on)
• Multiple parameters should be separated with the & symbol
• The first parameter after the embed code should be preceded by a ? symbol
